Mechanical weed removal for private users

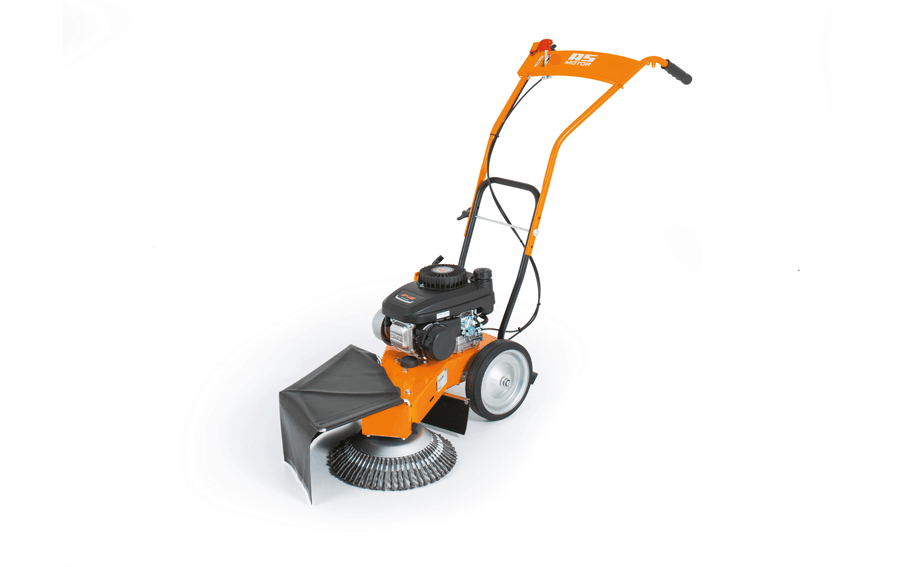

The AS 30 WeedHex 140 removes even the most stubborn weeds on uneven surfaces and in confined spaces, without the use of chemicals.

Weighing 35 kg, the compact AS 30 WeedHex 140 works mechanically, using a steel brush. At just 600 rpm the torque and thus the force on the brush increases. Work rates up to 700 m²/h are possible.
In addition, the low brush speed also reduces the danger of stone impact and dust creation, enabling safer work. The AS 30 WeedHex 140 is equipped with a protective cloth so it is unnecessary to shield the work area with panels or cloths. Designed for use on uneven surfaces, on cobblestones, along gutters and in corners, the AS 30 WeedHex 140’s wheels can be asymmetrically adjusted in height which places the brush at an incline. This means the AS 30 WeedHex 140 can get into places that cannot be reached with larger devices.

Product advantages

Reduced brush speed

The reduced brush speed of 600 rpm and protective cloth enable safe work with minimal risk of stone ejection or dust.

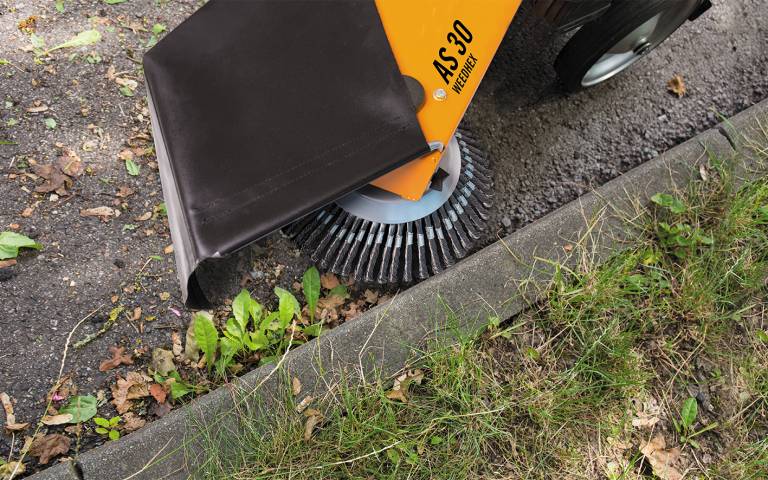

Perfect edge-clearing

Lateral offset between brush and chassis enables perfect edge-clearing.

Asymmetric chassis adjustment

Individually height-adjustable wheels (four levels) allow edges and depressions to be even more effectively cleared out and cleaned.

High brush torque

Engine/brush gear reduction more than doubles the torque for stubborn weeds.

Produktdetails

product-image

Brush system

The right brush for every requirement. The basic unit is delivered without brush as standard. The brushes can be selected according to individua area of application and has to be ordered separately.

product-image

Protective cloth

Protective cloth enables work on areas close to traffic and can be removed without tools.

product-image

Guide bar

The guide bar can be adjusted to 3 positions.

product-image

Wheel scrapers

Scrapers prevent cuttings from adhering to the wheels.

Warranty

At AS-Motor, we understand that professional users, municipalities, and property owners need more than just high-performance mowing technology – they need confidence in their investment. That’s why we go beyond industry norms to offer a warranty system that sets new standards in the landscaping sector.

Technische Daten

Arbeitsbreite 35 cm
Motorhersteller XP
Motorbezeichnung XP 140
Maximalleistung 2,4/3,3 kW/PS
Nennleistung 1,8/2,5 kW/PS
Nenndrehzahl 2800 U/min.
Bürstendrehzahl 600
Direkter Bürstenantrieb / Bürstenkupplung /
Geeignet für ebenes Pflaster
Geeignet für unebenes Pflaster
Geeignet für Randsteine
Geeignet auf unbefestigten Straßen
Lenkerverstellung, Höhe
Tankinhalt 0,8 l
Abmaße LxBxH 157x61x108 cm
Gewicht 35 kg
Optional, Tellerbürste Nylon 35 cm / Tellerbürste Stahl 35 cm / Bürstenträger für Zopfbürsten Stahl 42 cm / /
Änderungen und Irrtümer vorbehalten. Aus Angaben und Abbildungen können keine Ansprüche abgeleitet werden.

Zubehör

product-image

Operating hour meter

Documentation of work hours.

product-image

Plate brush, nylon

Developed for use on sensitive surfaces. Cutting force: gentle.

product-image

Plate brush, steel

As a reserve for daily use. Cutting force: very high.

product-image

Brush holder

For AS 30 WeedHex, allows the use of 2, 4 or 6 braid brushes. Working width 42 cm. Simple quick change system. Cutting force: high. New from mid-2019.

product-image

Braid brush, steel

For AS 50 WeedHex and AS 30 in conjunction with the brush holder. AS 50: 2 pieces per machine, AS 30: 2,4 or 6 pieces per machine.

product-image

3rd support wheel

Rotatable support wheel with quick locking device, reduces lateral forces considerably and allows consistent work with less fatigue.
